產品介紹
光通被動濾片

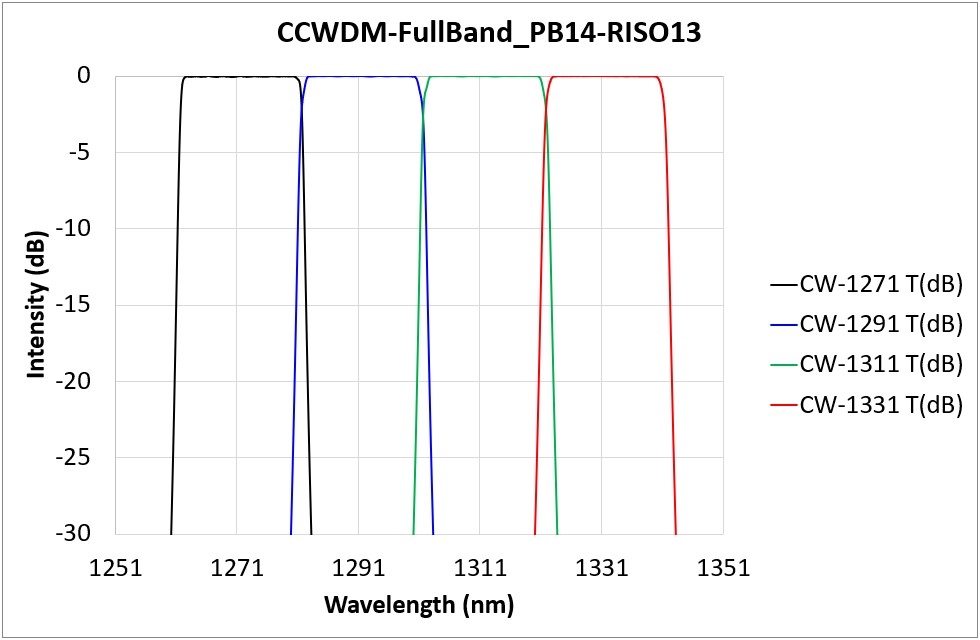

CCWDM-FullBand_PB14-RISO13
料號：CBD-00AGE-XXXX
產品規格
| CCWDM FullBand, PB14-RISO13 | ||
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | 1260~1620 |
| AOI | degree | 13.0or13.5 |
| Center Wavelength Tolerance @ -3.0dB | nm | 1270,1271~1610,1611 +/-0.5 |
| Pass Band Width @ -0.3dB | nm | >=+/-7.0 |
| Stop Band Width | nm | <=+/-13.0 |
| Transmission Isolation within Adjacent Channel | dB | >=30 |
| Transmission Isolation within Not-Adjacent Channel | dB | >=45 |
| Max IL within PassBand | dB | <=0.3 |
| Ripple within PassBand | dB | <=0.2 |
| Reflection Isolation | dB | >=13.0 |
| Max IL within StopBand | dB | <=0.2 |
| Ripple within StopBand | dB | <=0.15 |
| Polarization Dependent Loss within PassBand | dB | <=0.1 |
| Reflection of Backside AR Coating | % | <=0.2 |
| Size (Length*Width*Thickness) | mm | (1.4+/-0.1)*(1.4+/-0.1)*(1.0+/-0.2) |
| Wedge Angle | degree | 0.2 |
| Edge/Corner Chip | mm | <=0.1 |
| Scratch/Dig | 40 / 20 | |
