產品介紹
光通被動濾片

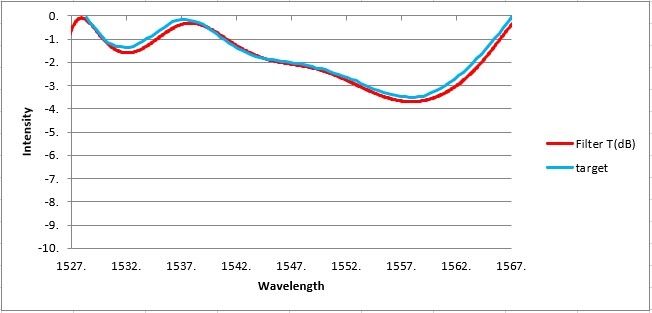

GFF 4.0dB
料號：GF0-1AAMS-5256
產品規格
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | C-Band or T,B.D |
| Angle of Incident | degree | 1~3 |
| Error Function @ target range(Peak to Peak) | dB | Max 0.38 |
| ILEF Tilt | dB | -0.2 / +0.2 |
| PDL | dB | <=0.1 |
| PMD | ps | <=0.1 |
| Reflection of Backside AR Coating | % | <=0.2 |
| Size (Length ´ Width ´ Thickness) | mm | (1.4+/-0.1)x(1.4+/-0.1)x(0.9~1.4) or (1.0+/-0.1)x(1.0+/-0.1)x(0.9~1.4) |
| Wedge Angle | degree | 0.2 |
| Edge/Corner Chip | mm | 0.1 / 0.15 |
| Scratch/Dig | 40 / 20 |
